MONDRAKER Crafty R NIMBUS GREY/BLACK 2023
Nový produkt
Ku každému biku od nás získaš ako bonus servis na 2 roky grátis - viac info TU
Model CRAFTY R, ktorý je k dispozícii v troch rôznych farbách, obohacuje našu kinematiku systému odpruženia ZERO, ktorý poskytuje mimoriadne odpruženie a zároveň neplytvá energiou. Je to jedna z našich priorít, pokiaľ ide o naše bicykle.
A čo viac, bicykel je skutočne obratný, čo je v eMTB veľmi potrebné. To všetko prispieva k maximálnej zábave a vynikajúcej hodnote za peniaze. Dodáva sa s motorom Bosch Performance CX Line Smart Control, úplne novým diaľkovým ovládačom Mini a integrovaným ovládačom systému. CRAFTY R je najkonkurencieschopnejší totálny enduro ebike na trhu.
Detaily

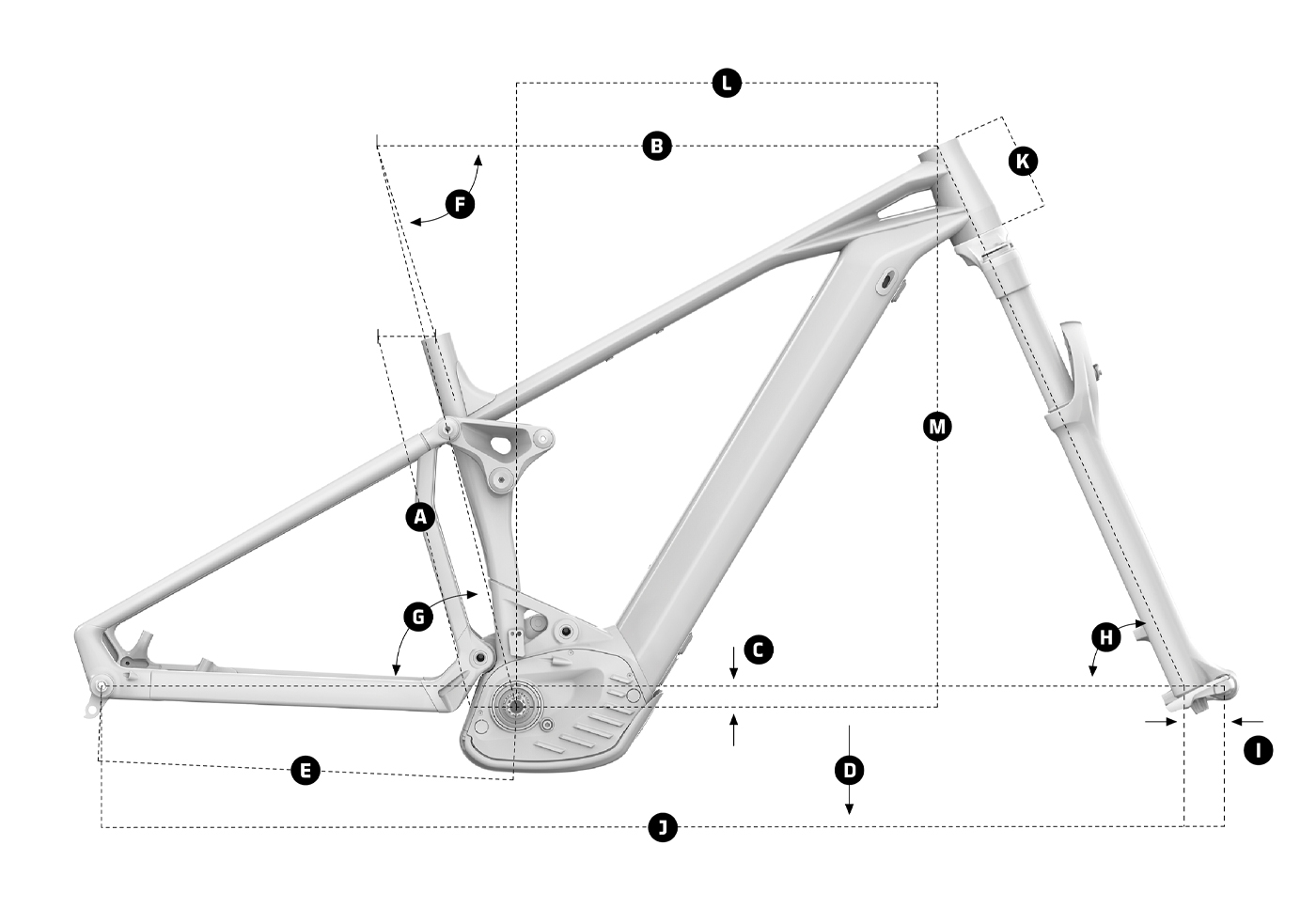

vyrábané veľkosti
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
rám
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
vidlica
Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
hlavové zloženie
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
brzdové páčky
Sram DB8, tool-free reach adjust
Sram DB8, tool-free reach adjust
kľuky
Race Face Aeffect ebike, 165mm
Race Face Aeffect ebike, 165mm
riadidlá
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
predstavec
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
sedlovka
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
sedlo
FIZIK Terra Aidon X5 145mm
FIZIK Terra Aidon X5 145mm
náboj predný
Mavic, Boost 15x110mm, IS 6 bolts
Mavic, Boost 15x110mm, IS 6 bolts
náboj zadný
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
reťaz
Sram SX Eagle, 12s, Powerlock
Sram SX Eagle, 12s, Powerlock
kazeta
Sram PG-1210, 11-50T, 12s
Sram PG-1210, 11-50T, 12s
drôty
Mavic J-bend double butted, contactless lacing
Mavic J-bend double butted, contactless lacing
ráfiky
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
plášte
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
obj.c.
010.23324
010.23324
gripy
Onoff Desert, 1lock-on, 135mm
Onoff Desert, 1lock-on, 135mm
tlmič
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
predná brzda
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
zadná brzda
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
nastavenia tlmiče
medium compression, medium rebound, air volume spacer 0.2
medium compression, medium rebound, air volume spacer 0.2
prevodník
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
pätka k přehazovačce
Mondraker M068
Mondraker M068
motor + batérie
Bosch Performance Line CX Cruise (25Km/h) Smart System , Bosch Powertube 750Wh, Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
Bosch Performance Line CX Cruise (25Km/h) Smart System , Bosch Powertube 750Wh, Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
