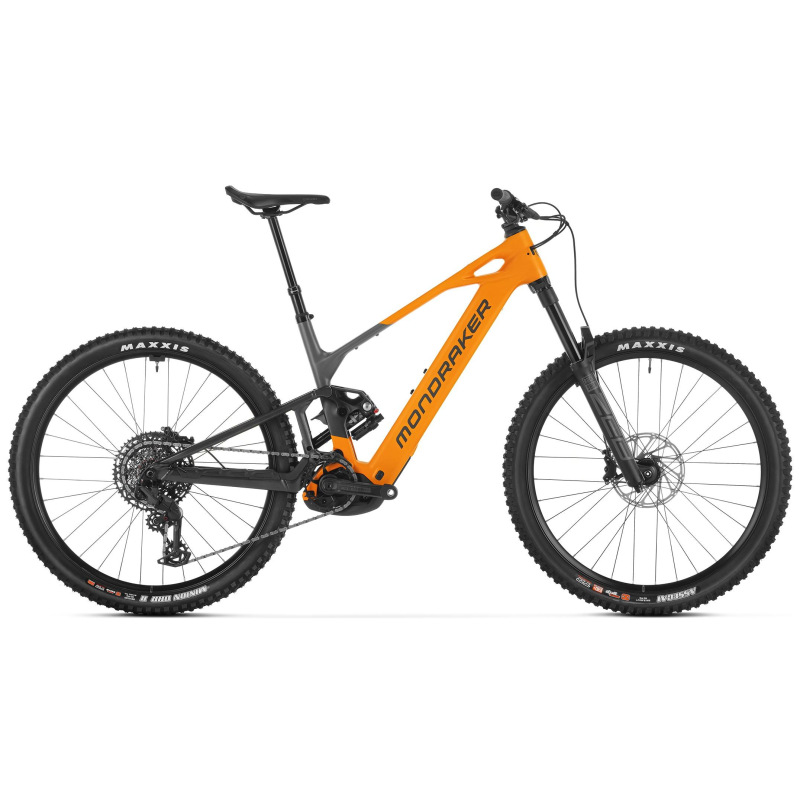

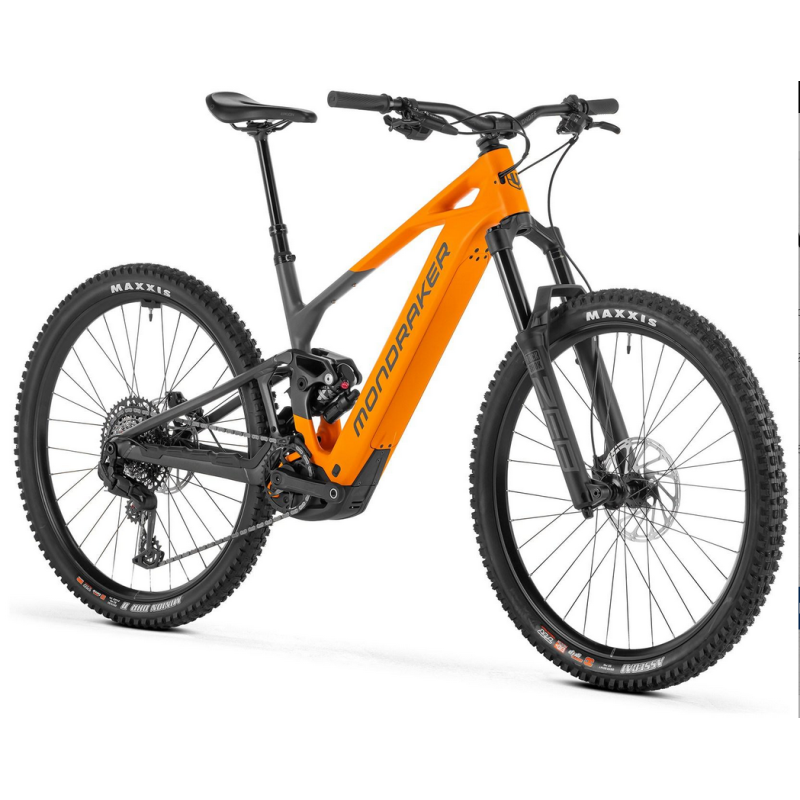

MONDRAKER Crafty Carbon S atomic orange 2026
Nový produkt
Ku každému biku od nás získaš ako bonus servis na 2 roky grátis - viac info TU
Detaily
Popis a parametre:
Rám
Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Veľkosti
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Zadný tlmič
Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Nastavenie tlmiča
CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer
Vidlica
RockShox ZEB Base Rush RC 29, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload
Hlavové zloženie
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Predstavec
Onoff S6 30mm 0?, 6061 forged alloy + CNC, 31.8mm barbore
Riadidlá
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8? backsweep, 5? upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Sedlo
Ergon SM-10
Sedlovka
X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531x200
Predná brzda
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Zadná brzda
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brzdové páčky
Sram DB8 Stealth, tool reach adjust, lever pivot bushings
Ráfiky
WTB Sportterra Tough,6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Drôty
WTB Straight gauge spokes & black brass locking nipples
Predný náboj
WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts
Zadný náboj
WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub
Predný plášť
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Zadný plášť
Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Kľuky
E.13 Helix Core E*Spec Plus, All sizes: 160mm
Prevodník
Sram Eagle 34T T-Type, direct mount, steel, CL55
Reťaz
Sram 70 T-Type, 12s Flattop, PowerLock
Prehadzovačka
Sram 70 Eagle, T-Type, 12s
Riadiaca páčka
Sram Trigger 70, 12s, T-Type Actuation
Kazeta
Sram XS-1270, 10-52T, 12s
Displej
Kiox 400 / Bosch Mini Remote
Motor
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Batéria
Bosch Powertube 800Wh
Počet prevodov
1X12
Pätka prehadzovačky
Sram UDH
Hmotnosť
24,3 kg
Gripy
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

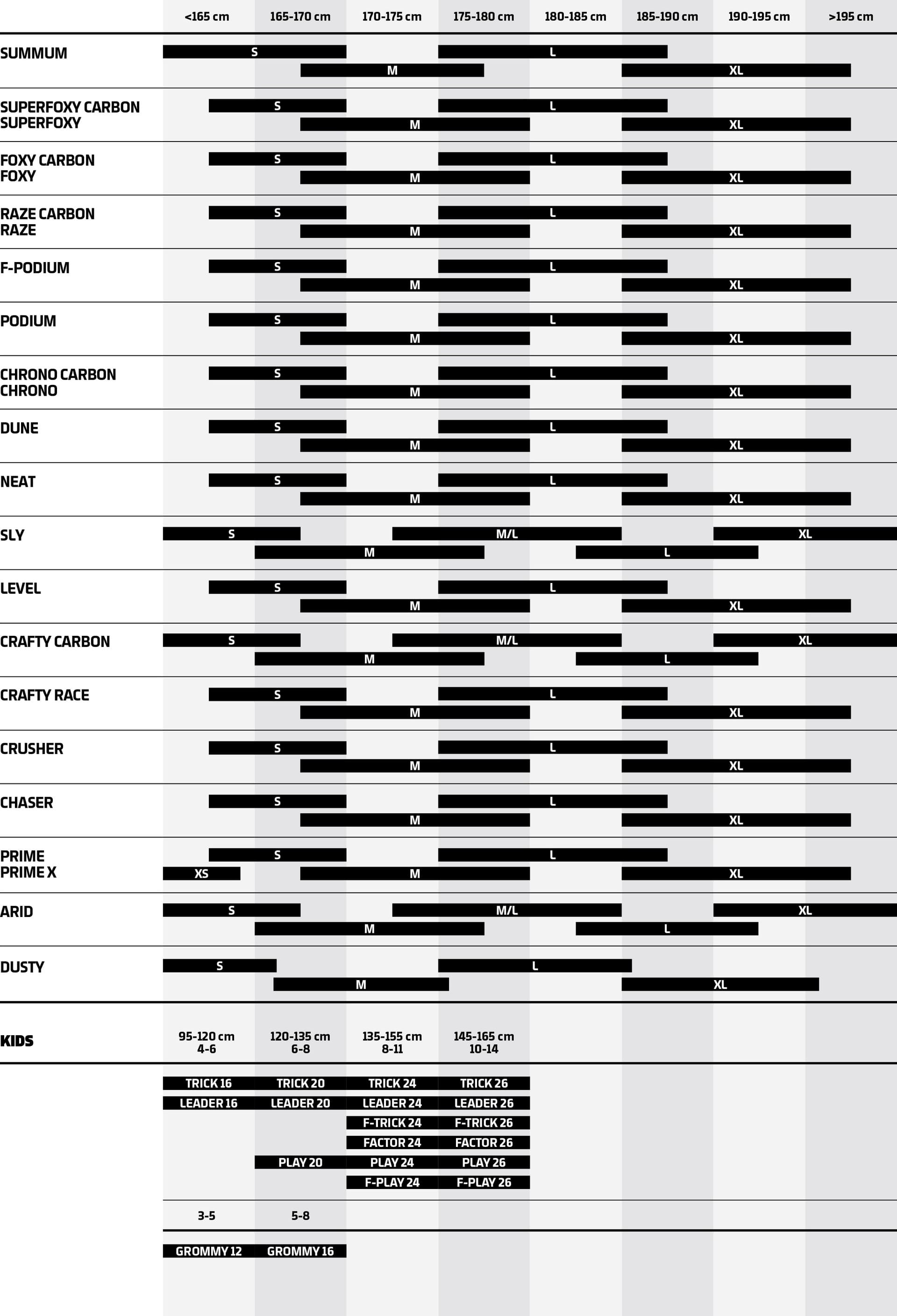

Veľkosti:
Táto veľkostná tabuľka je len odhadom, optimálna veľkosť rámu závisí od vašich osobných preferencií a štýlu jazdy. Ak si nie ste istí svojím výberom, obráťte sa na svojho predajcu.
Geometria:
Frame size | S [Std/Low] | M [Std/Low] | M/L [Std/Low] | L [Std/Low] | XL [Std/Low] | |
|---|---|---|---|---|---|---|
| A | Seattube length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B | Toptube length | 581 mm/582 mm | 596 mm/597 mm | 618 mm/619 mm | 640 mm/641 mm | 662 mm/663 mm |
| C | Bottom bracket drop | -25 mm/-30 mm | -25 mm/-30 mm | -25 mm/-30 mm | -25 mm/-30 mm | -25 mm/-30 mm |
| D | Bottom bracket height | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm |
| E | Chainstay length | 455 mm/456 mm | 455 mm/456 mm | 455 mm/456 mm | 465 mm/466 mm | 465 mm/466 mm |
| F | Seat tube angle | 73°/72.65° | 73°/72.65° | 73°/72.65° | 73°/72.65° | 73°/72.65° |
| G | Effective seattube angle | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° |
| H | Headtube angle | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° |
| I | Fork Offset | 44 mm | 44 mm | 44 mm/44 mm | 44 mm | 44 mm/44 mm |
| J | Wheelbase | 1240 mm/1241 mm | 1255 mm/1256 mm | 1280 mm/1281 mm | 1314 mm/1315 mm | 1338 mm/1339 mm |
| K | Headtube length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| L | Reach | 445 mm/441 mm | 460 mm/456 mm | 480 mm/476 mm | 500 mm/496 mm | 520 mm/516 mm |
| M | Stack | 638 mm/641 mm | 638 mm/641 mm | 647 mm/650 mm | 656 mm/659 mm | 665 mm/668 mm |
