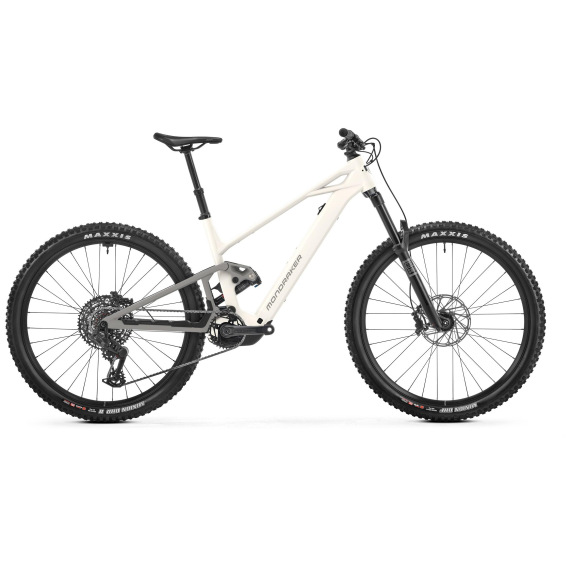

MONDRAKER Sly R optic white 2026
Nový produkt
Chceli sme, aby bol model SLY dokonalou voľbou pre jazdcov, ktorí chcú prejsť na e-bike alebo ľahký eMTB, a práve s týmto cieľom sme vytvorili náš doteraz najpokročilejší celoodpružený e-bike rám zo zliatiny Stealth Alloy.
Ku každému biku od nás získaš ako bonus servis na 2 roky grátis - viac info TU
Detaily
Popis a parametre:
Rám
6061 Alloy Stealth Evo, hydroformed tubing, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & non removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Veľkosti
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Zadný tlmič
Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Nastavenie tlmiča
CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer
Vidlica
Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Hlavové zloženie
Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Predstavec
Onoff S6 30mm 0?, 6061 forged alloy + CNC, 31.8mm barbore
Riadidlá
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8? backsweep, 5? upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Sedlo
Ergon SMC10 Gel
Sedlovka
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Predná brzda
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Zadná brzda
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brzdové páčky
Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Ráfiky
Mavic E-CrossTrail SL, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Drôty
Mavic 28 straight-pull double butted spokes
Predný náboj
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Zadný náboj
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
Predný plášť
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead
Zadný plášť
Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
Kľuky
E.13 Helix Core E*Spec Plus, All sizes: 160mm
Prevodník
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Reťaz
Sram GX Eagle T-Type, 12s, Powerlock
Prehadzovačka
Sram GX Eagle AXS T-Type,12s
Riadiaca páčka
Sram Eagle AXS Pod MMX, 12s
Kazeta
Sram XS-1275, 10-52T, T-Type, 12s
Displej
Kiox 400 / Bosch Mini Remote
Motor
Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Batéria
Bosch Compact Powertube 400Wh
Počet prevodov
1X12
Pätka prehadzovačky
Sram UDH
Hmotnosť
20,9 kg
Gripy
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

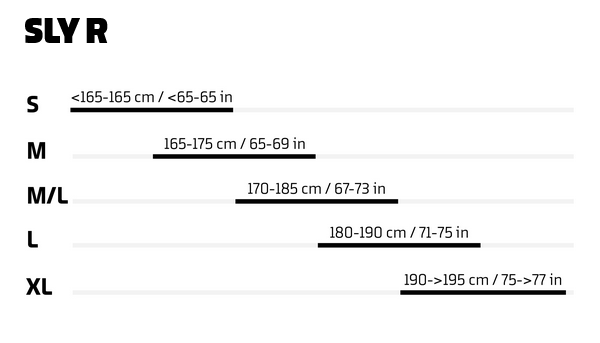

Veľkosti:
Táto veľkostná tabuľka je len odhadom, optimálna veľkosť rámu závisí od vašich osobných preferencií a štýlu jazdy. Ak si nie ste istí svojím výberom, obráťte sa na svojho predajcu.
Geometria:
Frame size | S | M | M/L | L | XL | |
|---|---|---|---|---|---|---|
| A | Seattube length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B | Toptube length | 595 mm | 615 mm | 635 mm | 660 mm | 685 mm |
| C | Bottom bracket drop | -22 mm | -22 mm | -22 mm | -22 mm | -22 mm |
| D | Bottom bracket height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| E | Chainstay length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| F | Seat tube angle | 74º | 74º | 74º | 74º | 74º |
| G | Effective seattube angle | 77º | 77º | 77º | 77º | 77º |
| H | Headtube angle | 64,5º | 64,5º | 64.5º | 64,5º | 64,5º |
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| J | Wheelbase | 1225 mm | 1250 mm | 1265 mm | 1290 mm | 1315 mm |
| K | Headtube length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| L | Reach | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm |
| M | Stack | 633 mm | 633 mm | 642 mm | 651 mm | 660 mm |
