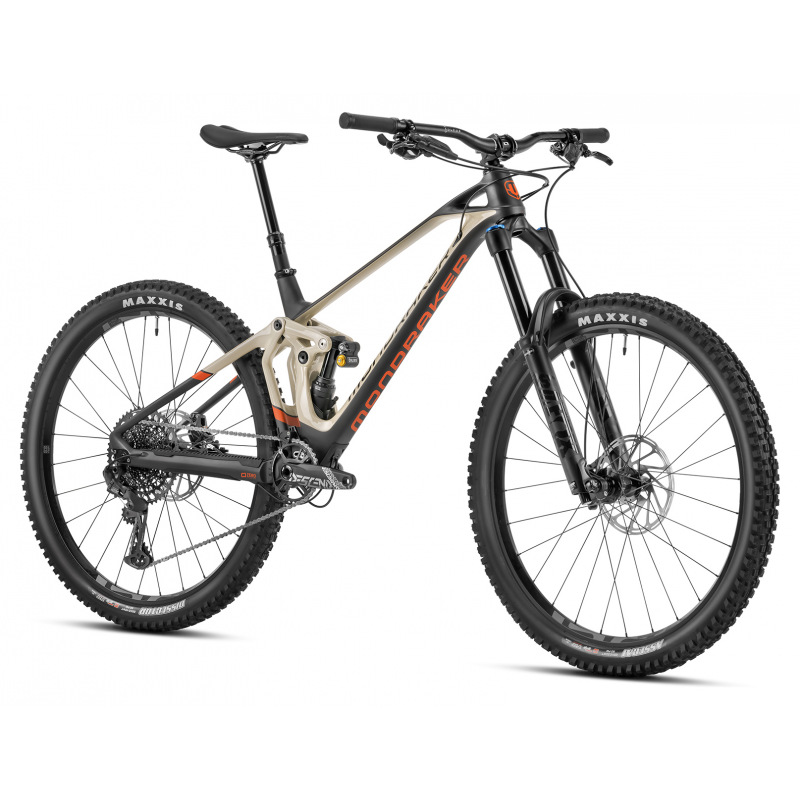

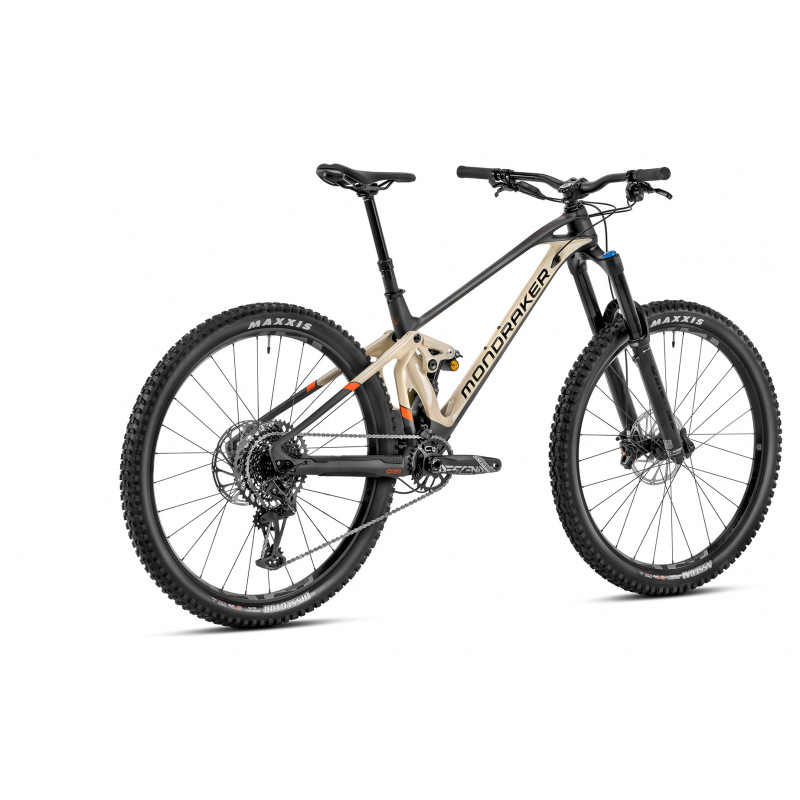

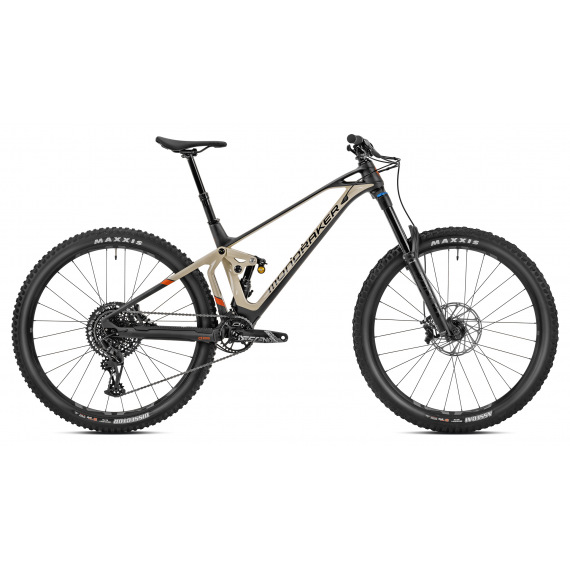

MONDRAKER SUPERFOXY CARBON R CARBON/DESERT GREY/ORANGE 2023
Nový produkt
Ku každému biku od nás získaš ako bonus servis na 2 roky grátis - viac info TU
Rovnako ako SUMMUM CARBON, ktorý je najľahším bicyklom na medzinárodnom okruhu DH, aj SUPERFOXY CARBON nasleduje to, čo si predstavujeme ako kategóriu Super Enduro.
170 mm zdvihu predného odpruženia a 160 mm vzadu nenechajú žiadne pochybnosti o tom, o čom tento bicykel je, a čo je najlepšie, vďaka 12-rýchlostnemu pohonu SRAM sa môžete vyšlapať až na vrchol a urobiť ďalší záber! Ľahká a odpružená vidlica Fox 38 a tlmič Öhlins TTX Air v kombinácii s rámom SuperBoost 12x157 mm a kyvkou swingarm vám poskytnú nevídanú tuhosť, vďaka ktorej sa tie najbrutálnejšie traily zdajú byť detskou hrou.
Detaily

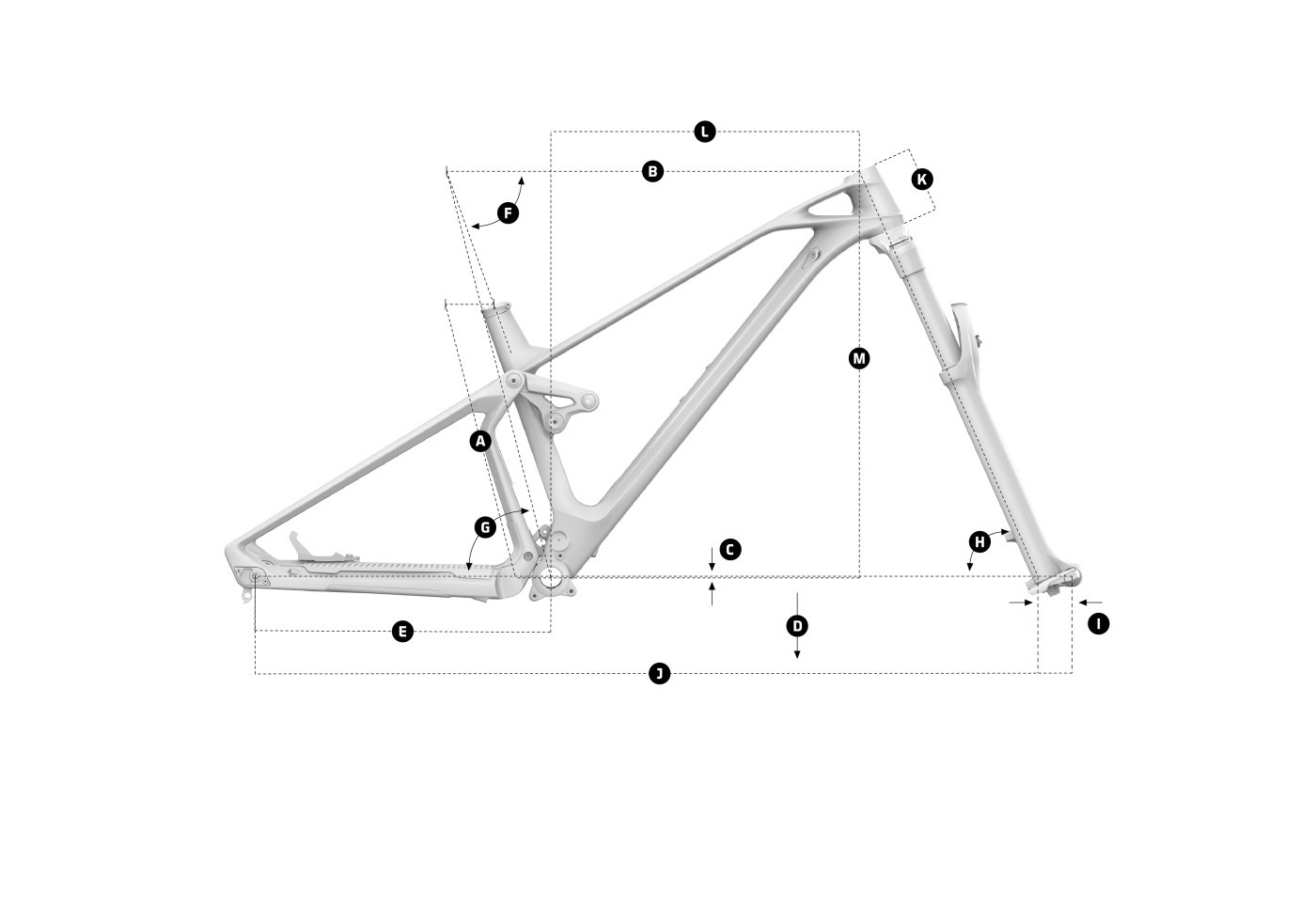

vyrábané veľkosti
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
rám
SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit
SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit
vidlica
Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
hlavové zloženie
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
prehadzovačka
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
radenie
Sram Trigger GX Eagle, 12s, X-Actuation 1:1
Sram Trigger GX Eagle, 12s, X-Actuation 1:1
brzdové páčky
Sram Code R, tool-free reach adjust
Sram Code R, tool-free reach adjust
kľuky
Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
stredové zloženie
Sram DUB BSA, sealed bearings, 73mm
Sram DUB BSA, sealed bearings, 73mm
riadidlá
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
predstavec
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
sedlovka
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
sedlo
SDG BEL-AIR 3.0, LPU foam, steel rails
SDG BEL-AIR 3.0, LPU foam, steel rails
náboj predný
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
náboj zadný
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
reťaz
Sram NX Eagle, 12s, Powerlock
Sram NX Eagle, 12s, Powerlock
kazeta
Sram XG-1275, 10-52T, 12s
Sram XG-1275, 10-52T, 12s
drôty
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
ráfiky
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
plášte
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead /Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead /Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
obj.c.
010.23141
010.23141
gripy
Onoff Desert, 1lock-on, 135mm
Onoff Desert, 1lock-on, 135mm
tlmič
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
predná brzda
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
zadná brzda
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
nastavenia tlmiče
C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
prevodník
32T, CNC-machined alloy, X-SYNC 2
32T, CNC-machined alloy, X-SYNC 2
pätka k přehazovačce
Mondraker M071
Mondraker M071
ostatné
*Optional geometry kit: 0º headset cups and chainstay adaptor for 450mm CS length
*Optional geometry kit: 0º headset cups and chainstay adaptor for 450mm CS length
