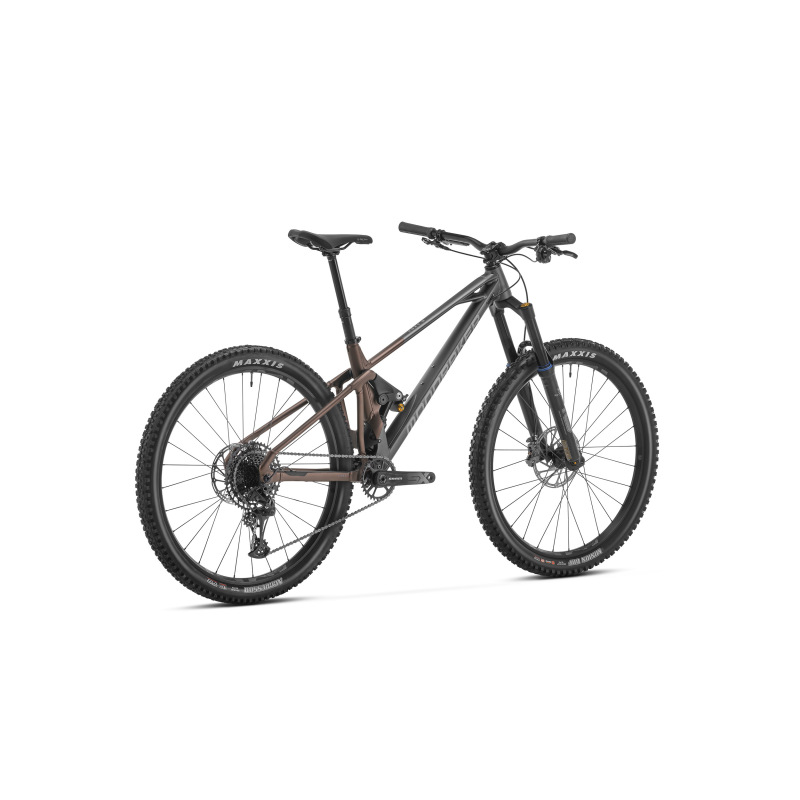

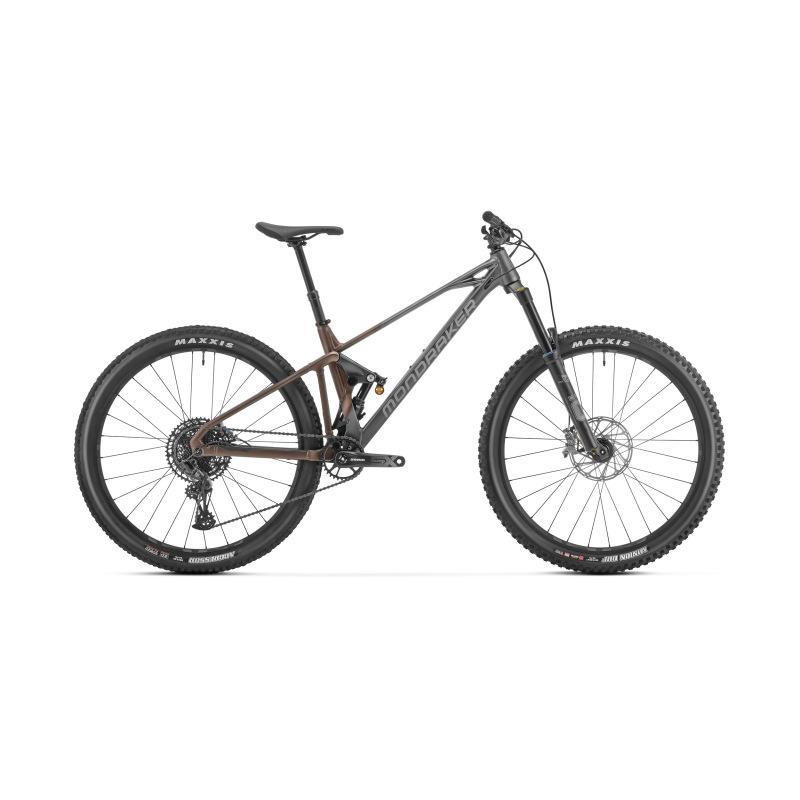

MONDRAKER FOXY R graphite grey/bronze/fog grey 2024
Nový produkt
Model Foxy vylepšený o nový design a tiež inovovanú geometriu

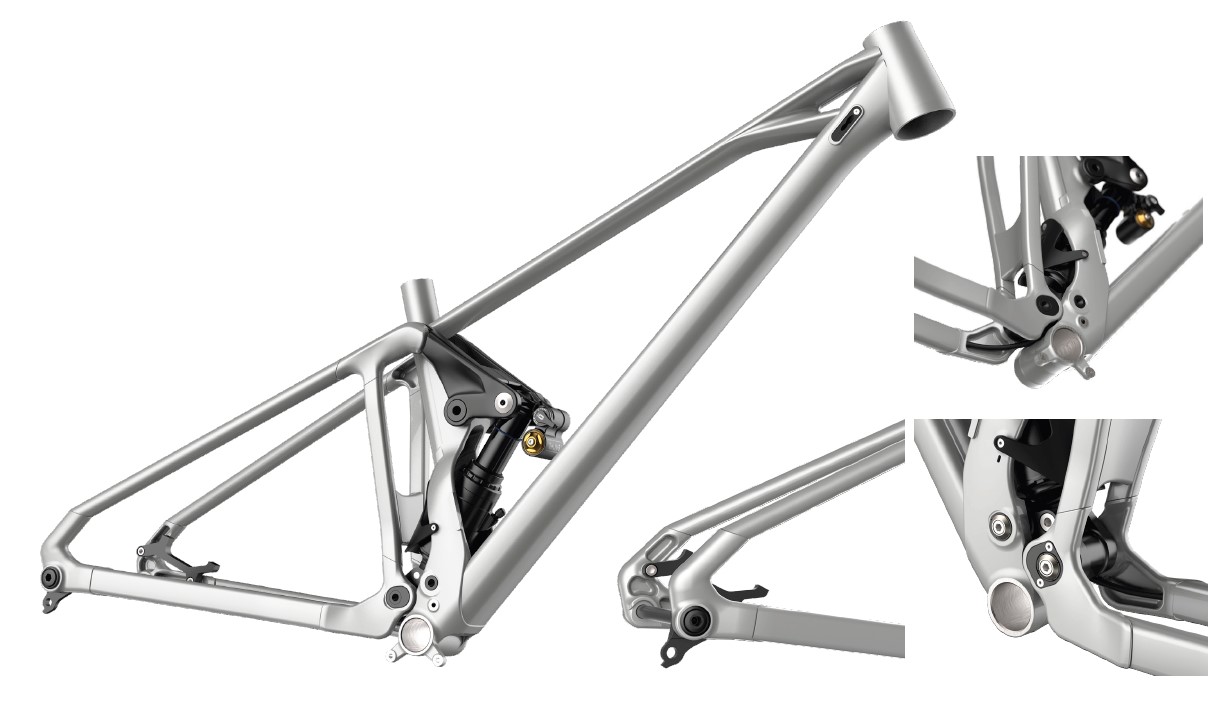

Zdokonalenie hliníkového rámu k maximálnej dokonalosti
Jeden z najlepších bikov v pomere cena/výkon
Ku každému biku od nás získaš ako bonus servis na 2 roky grátis - viac info TU
Detaily
Technické prevedenia a výhody nového systému:
- Ľahká konštrukcia Stealth Alloy - viac
- Forward geometria - viac
- Zero Suspension System odpruženie - viac
- Hliníková verzia Foxy Carbon- rovnaká geometria, kinematika a zameranie biku
- Dve možnosti geometrie (štandart a nízka) zmenou pozície spodného váhadla
- Zdvih odpruženej vidlice 160mm / tlmiča 150mm
- Maximálna šírka plášťov 2.50"
- Integrovaná ochrana zadného tlmiča pred nečistotami
- Post mount uchytenie brzdového strmeňa / kotúč 180mm
- Stred - závitový BB73 / gumové custom ochrany rámu
- Boost 12x148mm / / kompletne ukryté vedenie kabeláže
- UDH System - pätka meniča SRAM
- Štandart ISCG 05
| Rám: | Aluminum: Foxy 29 Stealth Evo Aluminum 6061, hydroformed tubes, Zero suspension system, 150 mm travel, Forward Geometry, one-piece Monoblock top link, Boost 12x148 mm rear axle, tapered head tube, BSA 73 mm bottom bracket, specific design for single chain drive, internal cable routing for telescopic seatpost, Enduro MAX sealed bearings, ISCG 05 |
|---|---|
| Tlmič: | Öhlins TTX Air 205x62.5 mm. Adjustments: high speed compression lever with climb mode, low speed compression, rebound, air preload. Trunnion top mount, 22.2 x 10 mm lower bushings |
| Nastavenie tlmiča: | C20 compression, R35 rebound |
| Vidlica: | Öhlins RXF 36 M.2 29, 160 mm, TTX18 Twin Tube cartridge, tapered steerer tube, 15 x 110 mm Boost axle, 44 mm offset. Adjustments: high speed compression lever with climb mode, low speed compression, rebound, air preload, ramp air chamber. Fork settings: C20 R40 |
| Hlavové zloženie: | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Predstavec: | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Riadítka: | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Sedlo: | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Sedlovka: | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Gripy: | Onoff Twin, 1lock-on, 135mm |
| Predná brzda: | Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Zadná brzda: | Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brzdové páky: | Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust |
| Ráfiky: | e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Špice: | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Predný náboj: | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Zadný náboj: | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub |
| Predný plášť: | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Zadný plášť: | Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
| Kľuky: | Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55 |
| Stredové zloženie: | Sram DUB BSA, sealed bearings, 73mm |
| Prevodník: | 32T, CNC-machined alloy, X-SYNC 2 |
| Reťaz: | Sram SX Eagle, 12s, Powerlock |
| Prehadzovačka: | Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Radenie: | Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Kazeta: | Sram PG-1230, 11-50T, 12s |
| Pätka: | Sram UDH |
| Vyrábané veľkosti | S: 380mm / M: 420mm / L: 470mm / XL: 510mm |
| Hmotnosť: | 16.2kg |
Frame size | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 375mm | 415mm | 445mmm | 500mm |
| B | Toptube length | 600mm | 622mm | 647mm | 670mm |
| C | Bottom bracket drop | -22mm/-27mm | -22mm/-27mm | -22mm/-27mm | -22mm/-27mm |
| D | Bottom bracket height | 350mm/345mm | 350mm/345mm | 350mm/345mm | 350mm/345mm |
| E | Chainstay length | 438mm/345mm | 438mm/445mm | 438mm/445mm | 445mm |
| F | Seat tube angle | 71º/70.5º | 71º/70.5º | 71º/70.5º | 71º/70.5º |
| G | Effective seattube angle | 77°/76.5º | 77°/76.5º | 77°/76.5º | 77°/76.5º |
| H | Headtube angle | 64.5º/64º | 64.5º/64º | 64.5º/64º | 64,5º |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1210mm/1216mm | 1233mm/1239mm | 1260mm/1267mm | 1286mm/1292mm |
| K | Headtube length | 100mm | 100mm | 120mm | 120mm |
| L | Reach | 445mm/440mm | 465mm/460mm | 485mm/480mm | 505mm/500mm |
| M | Stack | 617mm | 617mm | 647mm | 647mm |
