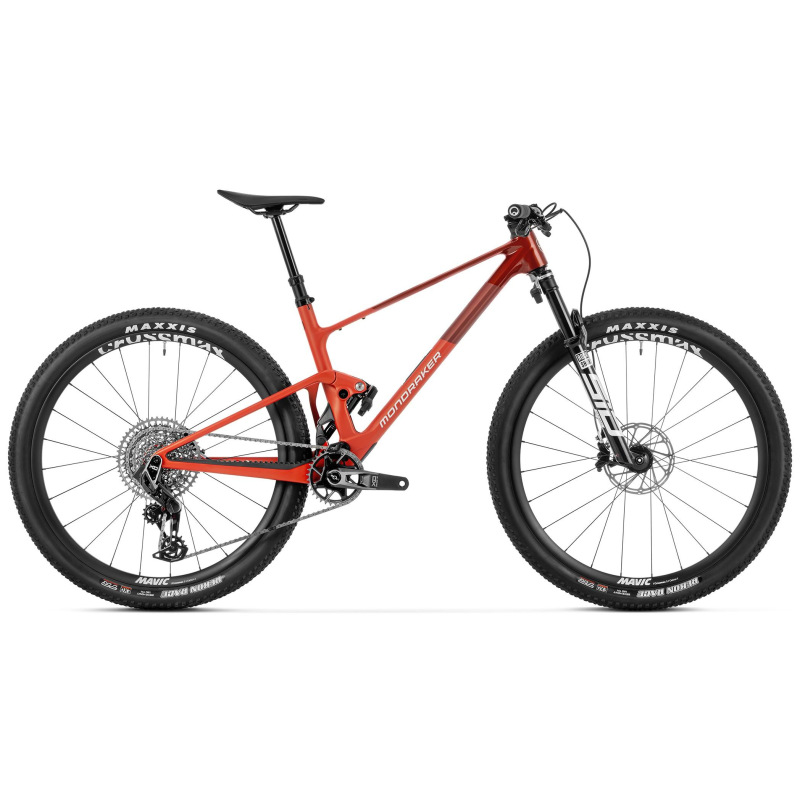

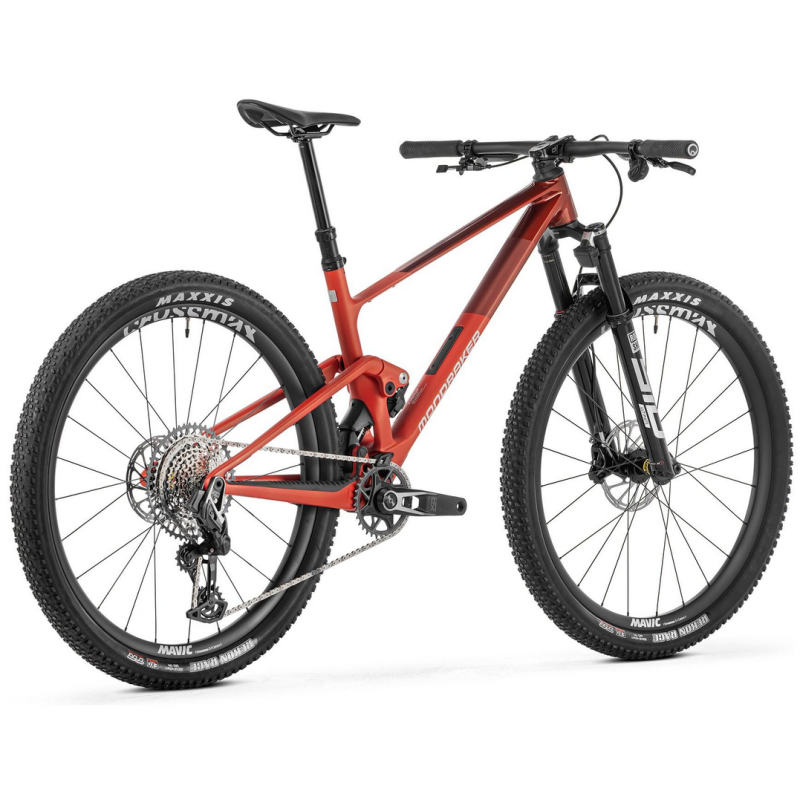

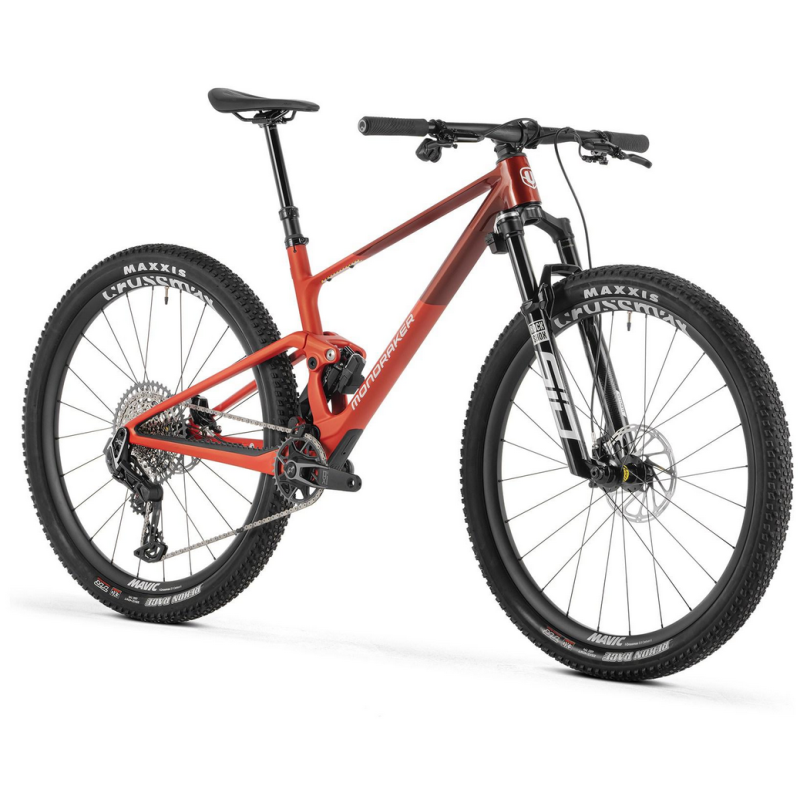

MONDRAKER F-Podium Carbon RR flame red 2026
Nový produkt
Ku každému biku od nás získaš ako bonus servis na 2 roky grátis - viac info TU
Detaily
Popis a parametre:
Rám
F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, UDH, shock mudguard, postmount rear brake mount.
Veľkosti
S: 410mm / M: 440mm / L: 470mm / XL: 500mm
Zadný tlmič
Rockshox SID Luxe Ultimate Flight Attendant, 165x45mm. Settings: Extl rebnd, E-cont. 3 pos comp (open/pedal/lock). Trunnion top mount, 30x8mm bottom bushings
Nastavenie tlmiča
R57 rebound, C30 compression, 1 Token
Vidlica
Rockshox SID Ultimate Flight Attendant, 120mm, Debon Air+, Charger Race Day 2, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: Extl rebnd, E-cont. 3 pos comp (open/pedal/lock). Fork remote: AXS controlled
Hlavové zloženie
Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock
Predstavec
Onoff S6 6061 T6 Alloy + CNC, 31.8mm barbore, rise: -7?, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Riadidlá
Onoff S6 Carbon 0.2, rise: 5mm, width: 760mm, 8? backsweep, 4? upsweep, 31.8mm barbore
Sedlo
Fizik Vento Argo X5 140mm
Sedlovka
Onoff Pija dropper internal, diameter 31.6mm, 2-BY Remote lever, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Predná brzda
Sram Motive Silver 4P Stealth, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Zadná brzda
Sram Motive Silver 4P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brzdové páčky
Sram Motive Silver, tools-free reach adjust, lever pivot bearings
Ráfiky
Mavic CrossMax S Carbon 29, 30mm internal width, hookless, tubeless ready, 24/28 spokes
Drôty
Mavic round J-bent stainless steel
Predný náboj
Mavic hub, Boost 15x110mm, IS 6 bolts
Zadný náboj
Mavic hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Predný plášť
Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
Zadný plášť
Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
Kľuky
Sram X0 Eagle T-Type, Power Meter, Boost, DUB axle, Direct mount chain ring, S size: 165mm, M size: 165mm, L size: 170mm XL size: 170mm, CL 55
Stredové zloženie
Sram DUB BSA, sealed bearings, 73mm
Prevodník
34T, CNC-machined alloy, T-Type
Reťaz
Sram GX Eagle, 12s, Powerlock
Prehadzovačka
Sram X0 Eagle AXS T-Type,12s
Riadiaca páčka
Sram Eagle AXS Pod, 12s
Kazeta
Sram XS-1275, 10-52T, 12s
Počet prevodov
1X12
Pätka prehadzovačky
Sram UDH
Hmotnosť
11,8 Kg
Gripy
Ergon GRX black
Veľkosti:
Táto veľkostná tabuľka je len odhadom, optimálna veľkosť rámu závisí od vašich osobných preferencií a štýlu jazdy. Ak si nie ste istí svojím výberom, obráťte sa na svojho predajcu.
Geometria:
Frame size | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 410 mm | 440 mm | 470 mm | 500 mm |
| B | Toptube length | 576 mm | 601 mm | 629,4 mm | 657,8 mm |
| C | Bottom bracket drop | -40 mm | -40 mm | -40 mm | -40 mm |
| D | Bottom bracket height | 335 mm | 335 mm | 335 mm | 335 mm |
| E | Chainstay length | 435 mm | 435 mm | 435 mm | 435 mm |
| F | Seat tube angle | 72,5° | 72,9° | 73,2° | 73,5° |
| G | Effective seattube angle | 76,2° | 76,2° | 76,2° | 76,2° |
| H | Headtube angle | 66,5° | 66,5° | 66,5° | 66,5° |
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J | Wheelbase | 1152 mm | 1177 mm | 1208 mm | 1239 mm |
| K | Headtube length | 90 mm | 90 mm | 105 mm | 120 mm |
| L | Reach | 430 mm | 455 mm | 480 mm | 505 mm |
| M | Stack | 594,6 mm | 594,6 mm | 608,3 mm | 622,1 mm |
